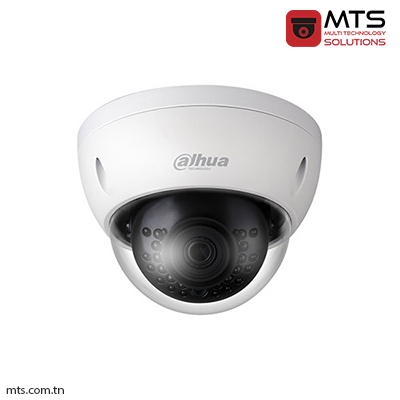

CAMERA IP DAHUA 5MP POE IK10 IP67 IR 30M Voir plus grand

IPC-HDBW1531EP CAMERA IP DAHUA 5MP POE IK10 IP67 IR 30M

Nouveau produit

5MP WDR IR Mini-Dome Network Camera

> 1/2.7” 5Megapixel progressive CMOS
> H.265& H.264 dual-stream encoding
> 15fps@5M(2592×1944) &25/30fps@3M(2304×1296)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm optional)
> Max IR LEDs Length 30m
> IP67, IK10, PoE

Plus de détails

IPC-HDBW1531EP

  • Description

    Camera
    Image Sensor 1/2.7” 5Megapixel progresive CMOS
    Effective Pixels 2592(H)x1944(V)
    RAM/ROM 512MB/32MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
    Minimum Illumination 0.03Lux/F2.0( Color,1/3s,30IRE)

    0.3Lux/2.0( Color,1/30s,30IRE)

    0Lux/F2.0(IR on)
    S/N Ratio More than 50dB
    IR Distance Distance up to 30m(98ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 24
    Lens
    Lens Type Fixed
    Mount Type Board-in
    Focal Length 2.8mm (3.6mm optional)
    Max. Aperture F2.0/F2.0
    Angle of View H:96°/78°, V:70°/58°
    Focus Control Fixed
    Close Focus Distance N/A
    DORI Distance Lens Detect Observe Recognize Identify
    2.8 mm 63(207ft) 25(82ft) 13(43ft) 6(20ft)
    3.6 mm 80(262ft) 32(105ft) 16(52ft) 8(26ft)
    PTZ
    Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°
    Intelligence
    Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly
    IVS Tripwire, Intrusion
    Video
    Compression H.265/H.264H/MJPEG(Sub Stream)
    Smart Codec Support H.265+/H.264+
    Streaming Capability 2 Streams
    Resolution 5M(2592×1944)/4M(2688×1520)/3M(2304×1296/2048×1536)/1080P(1920×1080)/720P(1280×720)/

    D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
    Frame Rate Main Strwam: 5M(1 ~ 15fps)/3M(1 ~ 25/30fps)
    Sub Stream: D1(1 ~ 25/30fps)
    Bit Rate Control CBR/VBR
