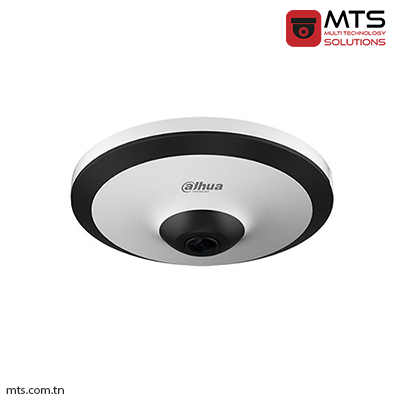

CAMERA IP DAHUA  FISHEYE 5MP PANORAMIC  POE IP67  IR 10M Voir plus grand

IPC-EW5531P-AS CAMERA IP DAHUA FISHEYE 5MP PANORAMIC POE IP67 IR 10M

Nouveau produit

5MP Panoramic Network IR Fisheye Camera

> 1/2.7” 5Megapixel progressive scan STARVIS™ CMOS
> H.265/H.264 triple-stream encoding
> Max 25fps@5M(2592×1944)
> Multiple dewarped Mode
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Smart detection
> Intelligent Function
> Max. IR LEDs length 10m> Micro SD memory, PoE

Plus de détails

IPC-EW5531P-AS

  • Description

    Camera
    Image Sensor 1/2.7” 5Megapixel progressive scan CMOS
    Effective Pixels 2592(H)x1944(V)
    RAM/ROM 512MB/32MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
    Minimum Illumination 0.006Lux/F2.0( Color,1/3s,30IRE)

    0.02Lux/F2.0( Color,1/30s,30IRE)

    0Lux/F2.0(IR on)

    IR Distance Distance up to 10m(33ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 3
    Lens
    Lens Type Fixed
    Mount Type Board-in
    Focal Length 1.4mm
    Max. Aperture F2.0
    Angle of View H: 180˚, V:180˚
    Optical Zoom N/A
    Aperture type Fixed
    Close Focus Distance N/A
    DORI Distance Detect Observe Recognize Identify
    28m(92ft) 11m(36ft) 6m(19ft) 3m(9ft)
    Pan/Tilt/Rotation
    Pan/Tilt/Rotation Range N/A
    Intelligence
    IVS Tripwire, Intrusion
    Advanced Intelligent Functions Heat Map
    Video
    Compression H.265/H.264/H.264H/MJPEG(Sub Stream)
    Smart Code Support H.265+/H.264+
    Streaming Capability 3 Streams
    Resolution 5M(2582×1944)/ 3M(2048×1536)/ UXGA(1600×1200)/ 1.3M(1280×960)/ 1080P(1920×1080)/ 720P(1280X720)/ D1(704×576/VGA(640X480)/ CIF(352×288)
    Frame Rate Main Stream: 5M(1~25fps)
    Sub Stream: D1(1 ~ 25/30fps)
    Third Stream: D1(1 ~ 10/17fps)
    Bit Rate Control CBR/VBR
    Bit Rate H.265: 3Kbps~ 40960Kbps

    H.264: 3Kbps~ 40960Kbps
