CAMERA IP DAHUA 4K POE IP66 IR 30M Voir plus grand

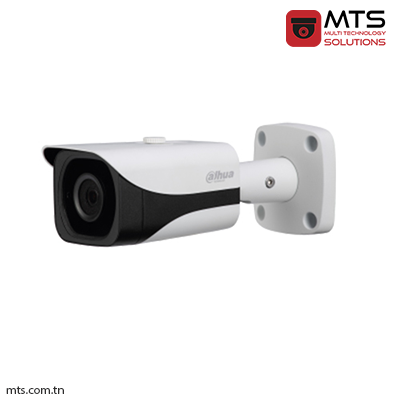

IPC-HFW4800EP CAMERA IP DAHUA 4K POE IP66 IR 30M

Nouveau produit

1/2.3” 4K progressive scan CMOS
H.264 &MJPEG dual-stream encoding
Max 15fps@4K(3840×2160)
DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
4mm fixed lens
Max. IR LEDs Length 30m
IP66, PoE

Plus de détails

IPC-HFW4800EP

  • Description

    Model DH-IPC-HFW4800E
    Camera
    Image Sensor 1/2.3” 4K progressive scan CMOS
    Effective Pixels 3840(H)x2160(V)
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
    Min. Illumination 0.1Lux/F1.6 (Color), 0Lux/F1.6(IR on)
    S/N Ratio More than 50dB
    Video Output N/A
    Camera Features
    Max. IR LEDs Length 30m
    Day/Night Auto(ICR)/Color/B/W
    Backlight Compensation BLC / HLC / DWDR
    White Balance Auto/Manual
    Gain Control Auto/Manual
    Noise Reduction 3D
    Privacy Masking Up to 4 areas
    Lens
    Focal Length 4mm
    Max Aperture F1.6
    Focus Control Manual
    Angle of View H:80°
    Lens Type Fixed lens
    Mount Type Board-in Type
    Video
    Compression H.264/ MJPEG
    Resolution 4K(3840×2160)3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) / CIF(352×288/352×240)
    Frame Rate Main Stream 4K(1~15fps)/3M/1080P/ (1 ~ 25/30fps)
    Sub Stream D1/CIF(1 ~ 25/30fps)
    Bit Rate H.264: 20K ~ 16Mbps
    Audio
    Compression N/A
    Interface N/A
    Network
    Ethernet RJ-45 (10/100Base-T)
    Wi-Fi N/A
    Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
    Compatibility ONVIF,PSIA,CGI
    Max. User Access 20users
    Smart Phone iPhone, iPad, Android, Windows Phone
    Auxiliary Interface
    Memory Slot N/A
    RS485 N/A
    Alarm N/A
    PIR Sensor Range N/A
    General
    Power Supply DC12V, PoE (802.3af)
    Power Consumption <7.5W
    Working Environment -30°C~+60°C, Less than 95% RH
    Ingress Protection IP66
    Vandal Resistance N/A
    Dimensions 168.1mm×66mm×58.4mm
    Now: 178.4mm×70mm×69.9mm
    Weight 528g(683.4g with packaging)
