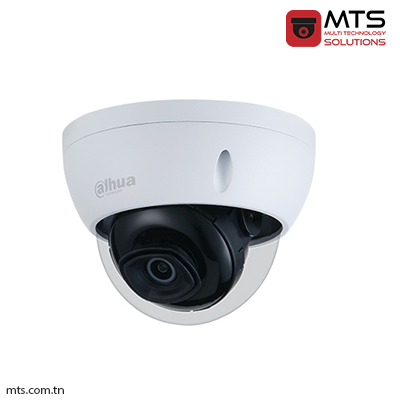

IPC-HDBW2531EP-S-S2 CAMERA IP DAHUA 5MP POE IK10 IP67 IR 30M

Nouveau produit

5MP Lite IR Fixed-focal Dome Network Camera

> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

Plus de détails

IPC-HDBW2531EP-S-S2

  • Caméra
    Capteur d’image CMOS progressif 1 / 2,7 ”5 mégapixels
    Pixels efficaces 2592 (H) × 1944 (V)
    ROM 128 Mo
    RAM 256 Mo
    Système de numérisation Progressive
    Vitesse d’obturation électronique Auto / Manuel 1/3 s – 1/100000 s
    Min. Éclairage 0,008 lux @ F1,6
    Distance IR 30 m (98,43 pi)
    Contrôle marche / arrêt infrarouge Auto / Manuel
    Nombre de LED IR 3
    Pan / Tilt / Rotation Range Pan: 0 ° –355 °
    Inclinaison: 0 ° –65 °Rotation: 0 ° –355 °
    Lentille
    Type d’objectif Fixé
    Type de montage M12
    Distance focale 2,8 mm
    3,6 mm
    Max. Ouverture F1.6

    F1.6
    Champ de vision 2,8 mm:

    Pan: 103,0 °

    Inclinaison: 71,0 °

    Diagonale: 132,0 °

    3,6 mm:

    Pan: 84,0 °

    Inclinaison: 58,0 °

    Diagonale: 110,0 °
    Type d’iris Ouverture fixe
    Distance de mise au point rapprochée 2.8 mm: 0.9 m (2.95 ft)
    3.6 mm: 1.6 m (5.25 ft)
    DORI Distance Lens Detect Observe Recognize Identify
    2.8mm 56 m
    (183.73 ft)    		 22.4 m
    (73.49 ft)    		 11.2 m
    (36.75 ft)    		 5.6 m
    (19.37 ft)
    3.6mm 80 m
    (262.47 ft)    		 32 m
    (104.99 ft)    		 16 m
    (52.49 ft)    		 8 m
    (26.25 ft)
    Smart Event
    General IVS Analytics Tripwire; intrusion
    Video
    Video Compression H.265; H.264; H.264B; MJPEG
    Smart Codec Yes
    Video Frame Rate Main stream:
    2592 × 1944 (1 fps-20 fps)
    2688 × 1520 (1 fps-25/30 fps)
    Sub stream:
    704 × 576 (1 fps-25 fps)
    704 × 480 (1 fps-30 fps)
    Stream Capability 2 streams
    Resolution 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
    Bit Rate Control CBR/VBR
    Video Bit Rate H.264: 32 Kbps–8192 Kbps

    H.265: 12 Kbps–8192 Kbps
    Day/Night Auto(ICR)/Color/B/W
    BLC Yes
    HLC Yes
    WDR 120 dB
    White Balance Auto/natural/street lamp/outdoor/manual/regional custom
    Gain Control Auto/Manual
    Noise Reduction 3D DNR
    Motion Detection OFF/ON (4 areas, rectangular)
    Region of Interest(RoI) Yes (4 areas)
    Smart IR Yes
    Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
    Mirror Yes
    Privacy Masking 4 areas
    Network
    Network RJ-45 (10/100 Base-T)
    Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
    Interoperability ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec
    Scene self-adaptation 20
    User/Host 20
    Edge Storage Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
    Browser IE

    Chrome

    Firefox
    Management Software Smart PSS; DSS; DMSS
    Mobile Phone IOS; Android
    Certification
    Certifications CE-LVD: EN60950-1
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B
    UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
    Power
    Power Supply 12V DC/PoE (802.3af)
    Power Consumption < 6.1W
    Environment
    Power Consumption -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
    Storage Temperature -40°C to +60°C (-40°F to +140°F)
    Protection Grade IP67, IK10
    Structure
    Casing Metal
    Dimensions 81 mm × Φ109.9 mm (3.19″ × Φ4.33″)
    Net Weight 0.350 kg (0.77 lb)
    Gross Weight 0.491 kg (1.08 lb)
